Shifter cam holder

The parts book calls them "Retainer, cam follower". Holder is simpler.
34065-52

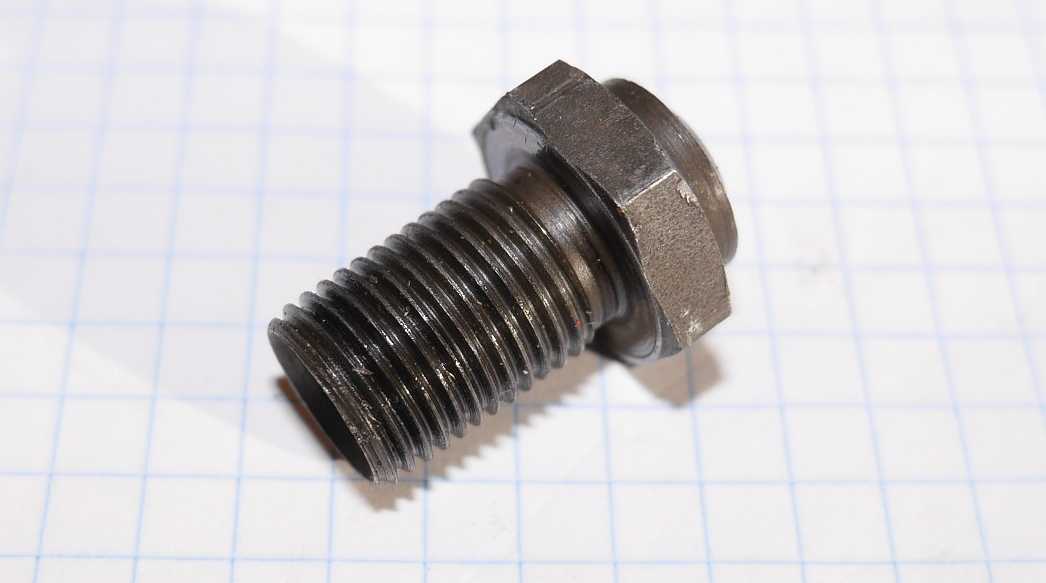

This hollow bolt holds a spring and plunger that presses on the edge of the shifter plate aka cow paddy..

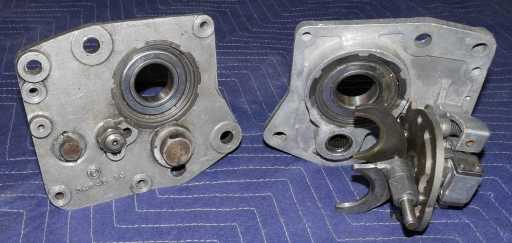

 Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.

The Sportster shifter cam follower assembly. The 34065-52 cam holder is on the far right. the part numbers from left to right: 34062-52, 34068-52A, 34067-52, 34065-52.
Bottom of first column move down to the left

34065-52

1952-1984

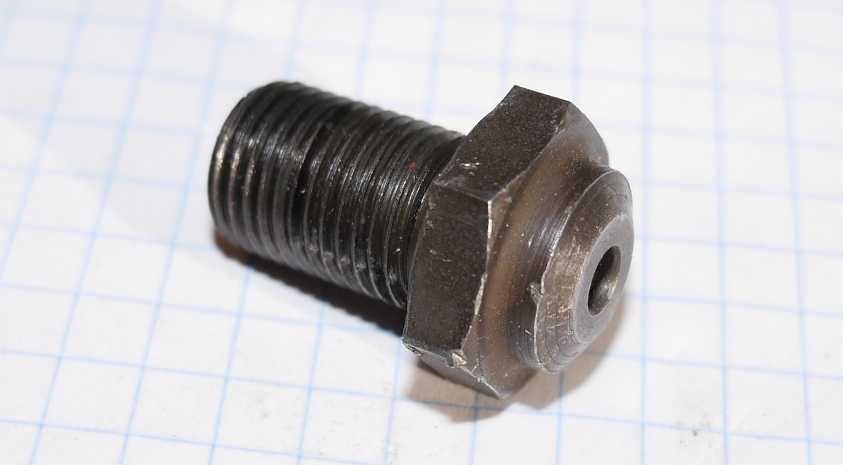

Sportster_34065-52_Shifter-cam-holder.jpgYou don't need to torque this very hard, since it has a metal lock tab to keep the bolt from backing out.

Here is the inside view. The bolt is hollow, so the spring and plunger fits inside of it.
