Shifter support plug

These steel plugs locate the support springs that center the shift pedal.
34485-52(2)
1952-1984

These little steel plugs press into the support to locate the end of the big shifter support springs. Those springs center the shift lever.

 Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.
../Sportster_34009-52_Shifter-assembly.JPG
The Iron Sportster shifter comes as the 34009-52 assembly.
Bottom of first column move down to the left

34485-52(2)

1952-1984

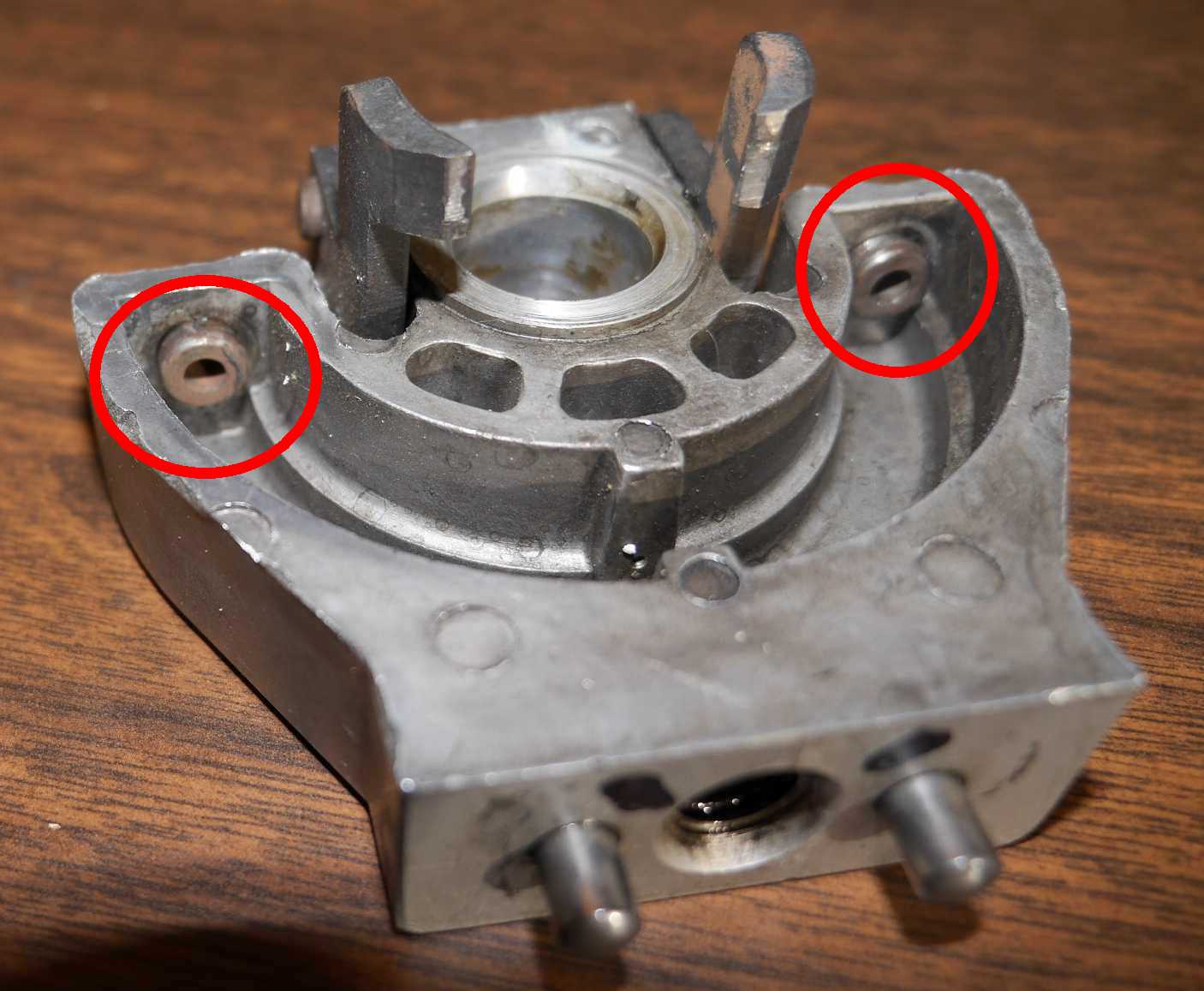

Here is the plugs installed and staked on the shifter support. The support springs get held on one end by these plugs.
Sportster_34485-52_Shifter-support-plug_1952-1984_rt.jpg.jpgThe plugs might damage the holder of you try to push them out.Sportster_34485-52_Shifter-support-plug_1952-1984_rt_3-4.jpg
