Shifter pawl retainer

The plate keep the early model shifter pawl plungers in place.
34525-70
1952-1971


 Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.
../Sportster_34009-52_Shifter-assembly.JPG
The Iron Sportster shifter comes as the 34009-52 assembly.
Bottom of first column move down to the left

34525-70

1952-1971

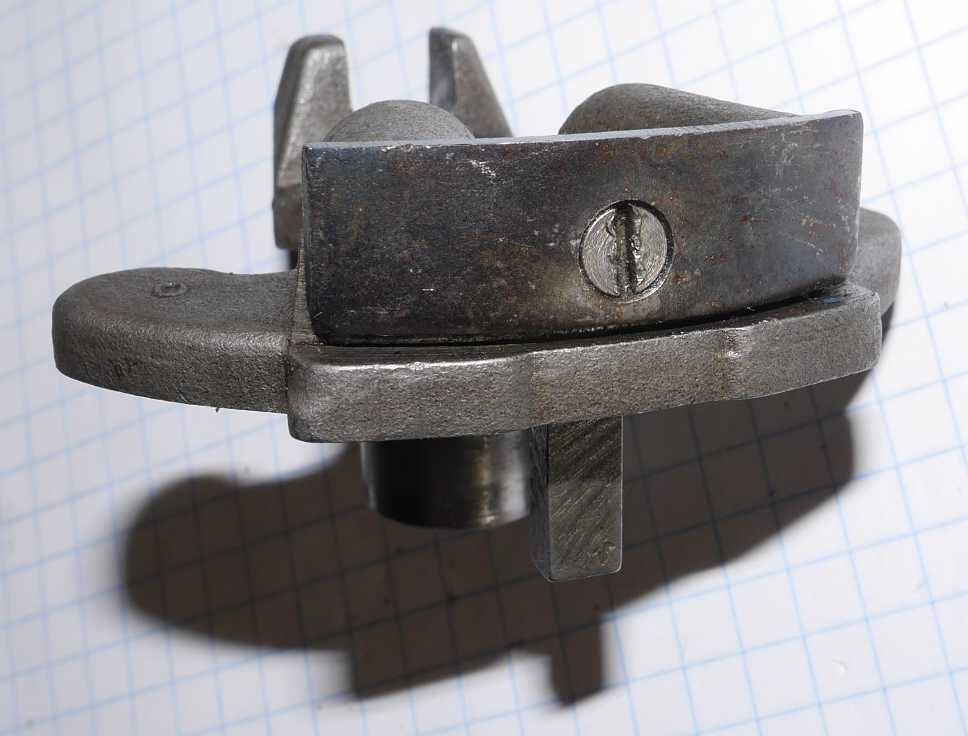

This metal plate retains the pawl plungers and provides a base for the pawl springs to react against. The part number only appears in 1970, althought the part was used since 1952. It is likely Harley considered it part of the carrier.
