Shifter pawl pin

The tiny pins keep the early model shifter pawl plungers from rotating.
219((2)
1952-1971


 Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.
../Sportster_34009-52_Shifter-assembly.JPG
The Iron Sportster shifter comes as the 34009-52 assembly.
Bottom of first column move down to the left

219(2)

1952-1971

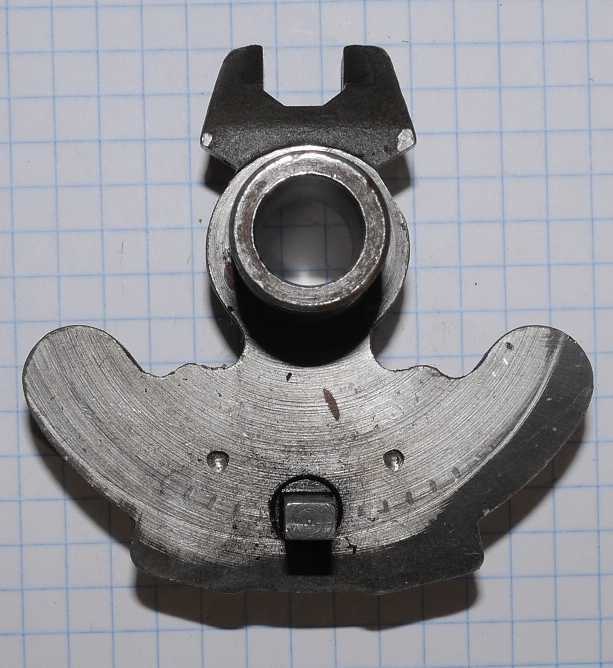

These are two tiny pins pressed into teh back of the shifter carrier. they go where the dimples are on this pawl carrier. The divots are where a worker has ground down the pins after pressing them in.
