Shifter lock tab

Springs extend the plungers or pivots the hooks on the later design.
7055
1952-1954

37080-41
1955-1970

34069-71
1971-1984
 Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.
../Sportster_34009-52_Shifter-assembly.JPG
The Iron Sportster shifter comes as the 34009-52 assembly.
Bottom of first column move down to the left

7055

1952-1954

Just a lockwasher, just a plain-old lockwasher.


37080-41

1955-1970


34069-71

1971-1984

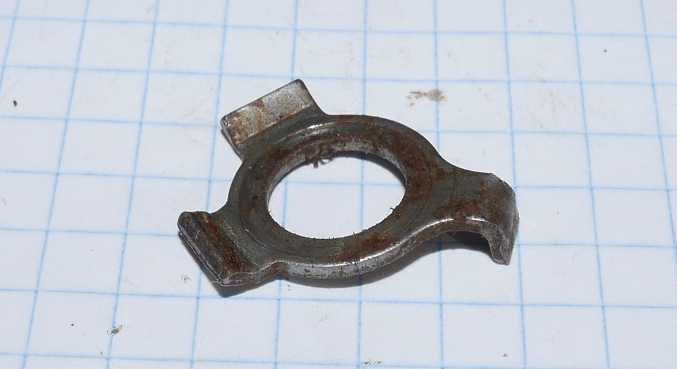

Sportster_34069-71_Shifter_lock-tab_1971-1984.jpgThis bendable lock tab goes under the main bolt that holds the shifter mechanism in.

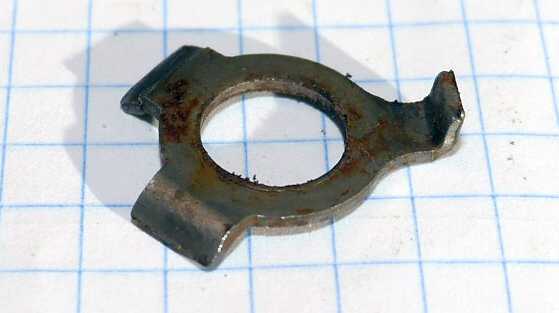

Sportster_34069-71_Shifter_lock-tab-alt_1971-1984.jpgThe bottom view.
move up a little to the right This is the end.
