Shifter carrier pin

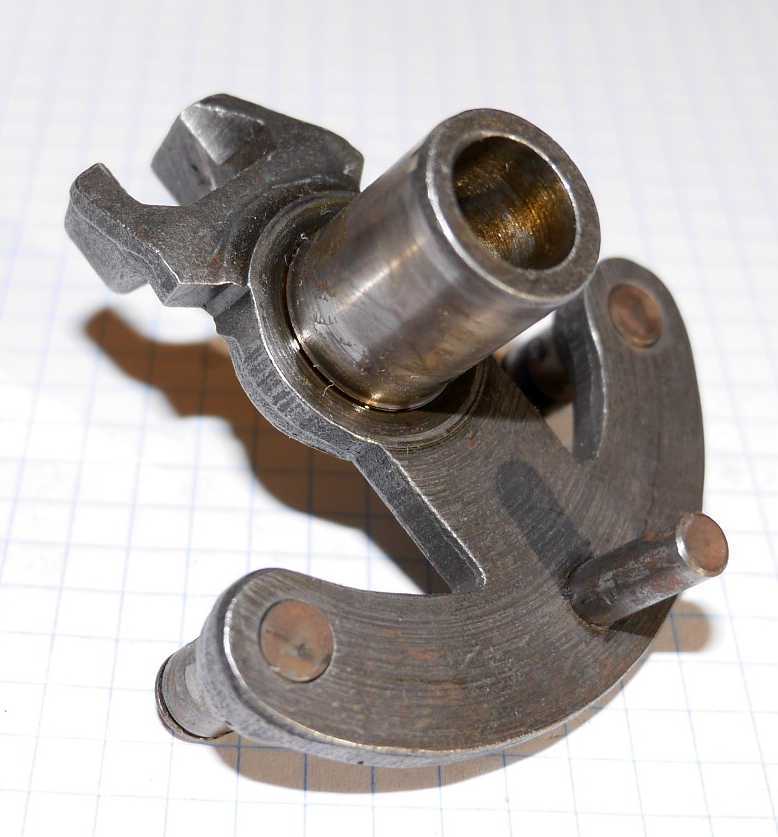

This pin reacts agains the two springs that center the shift lever.
34503-52
1952-1971

Part of carrier
1972-1984

 Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.
../Sportster_34009-52_Shifter-assembly.JPG
The Iron Sportster shifter comes as the 34009-52 assembly.
Bottom of first column move down to the left

34503-52

1952-1971


Part of carrier

After 1971, the factory made this pressed-in pin a part of the carrier itself.
