Mainshaft bearing race

The mainshaft roller bearing race is a long-lived part, 1952 to 1983.
The three types of mainshafts are early dry clutch (left), early electric start (middle), and late wet clutch (right).

The two early shafts have a hole through them lengthwise to pass the dry clutch release rod. The late shaft is solid, the wet clutch release is in the primary cover.







The mainshaft bearing race was the same part from 1952 to 1983. In early 1984 it changed, and then changed again in late 1984 with the clutchernator. That later part is not covered here.
Sportster_Mainshafts

The mainshaft bearing race goes on the far side of these shafts. It is pressed into the case. If you replace it, you should hone the bearing race before running the tranny.
Bottom of first column move down to the left

35105-52

1952-1983

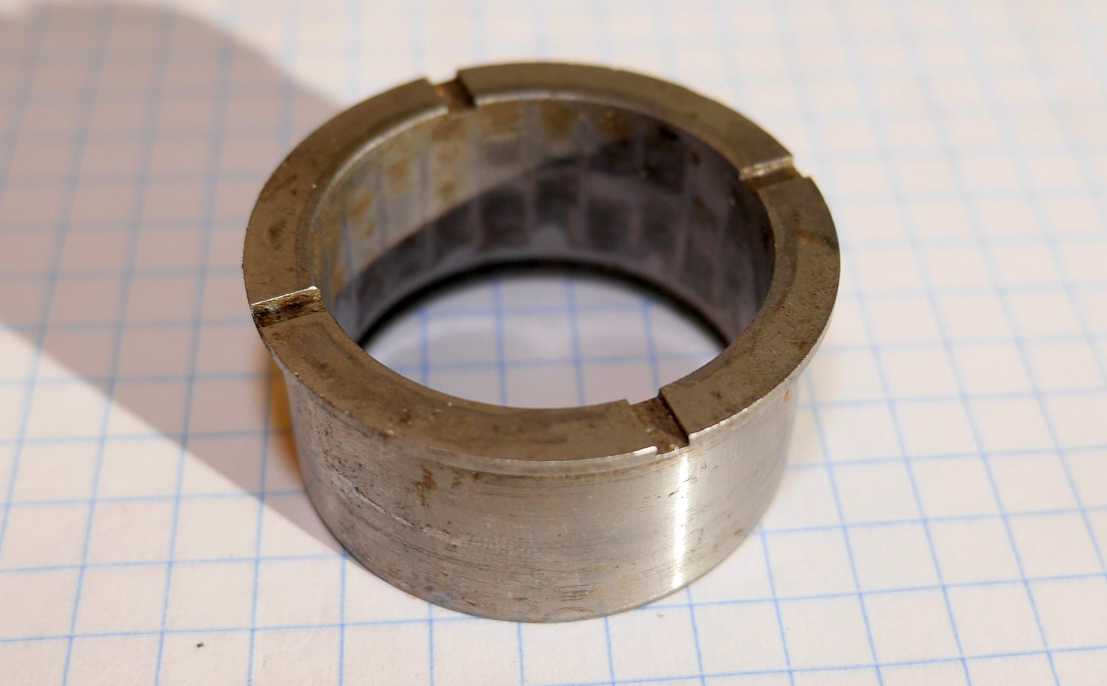

Sportster_35105-52_Mainshaft-bearing-race_1952-1983_lf.jpgThe mainshaft roller bearing race.

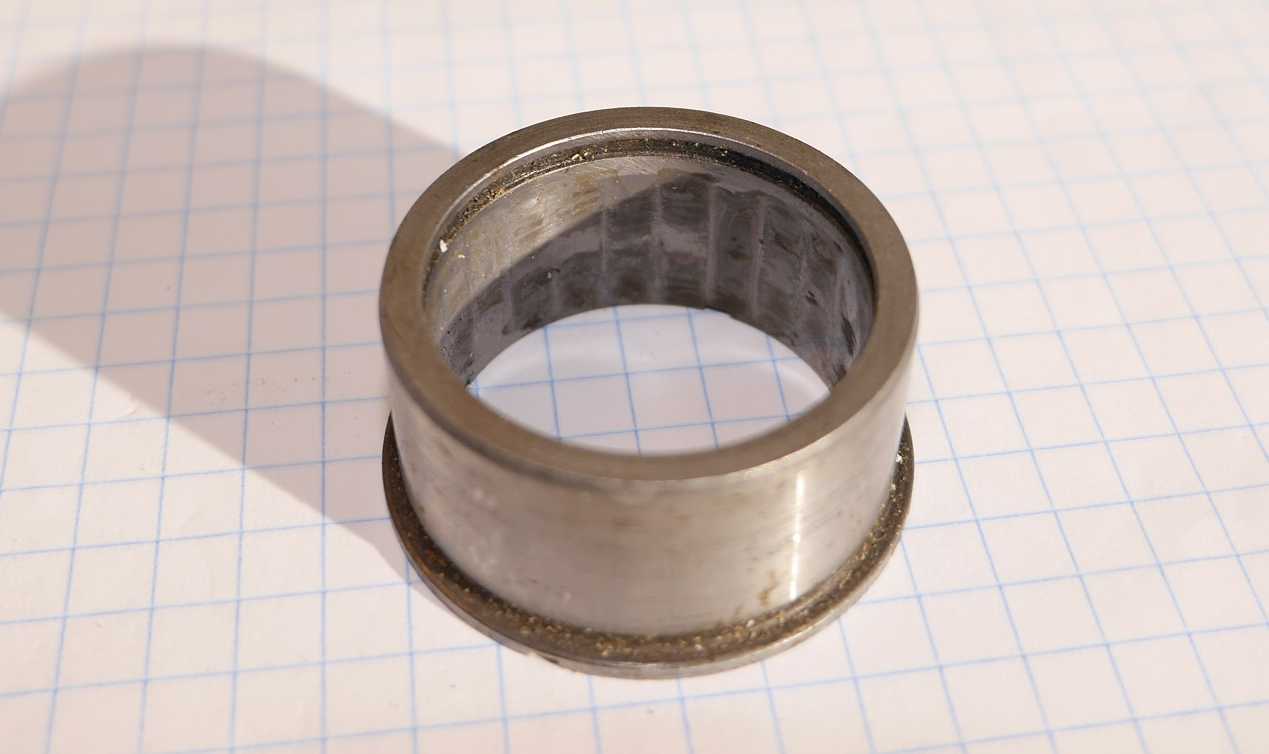

View at right side of bike.

35105-83

1984

Location

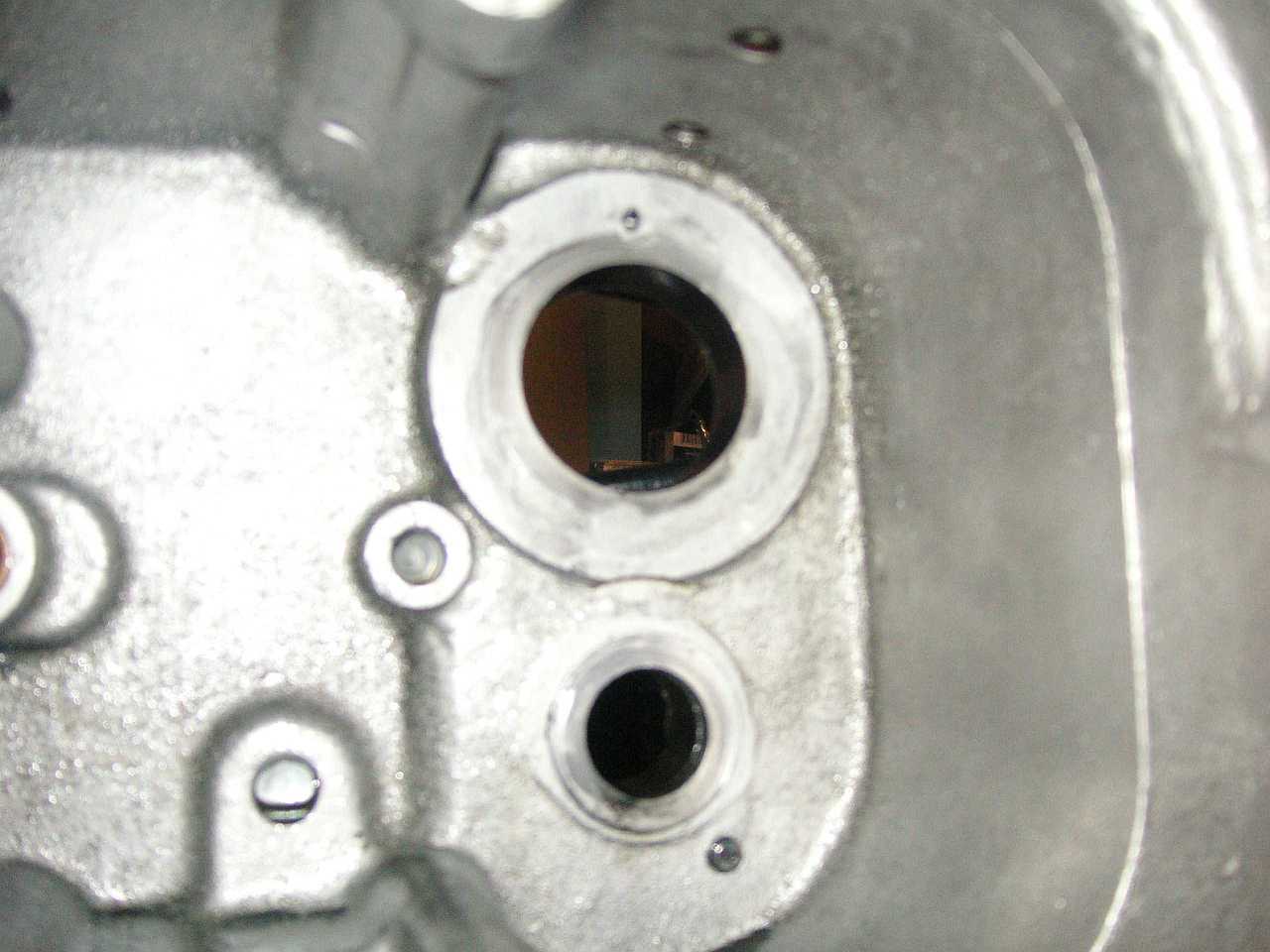

Sportster_35105-52_Mainshaft-bearing-race_location.JPGLocation of the 35105-52 bearing race.
