Primary cover asy
Oil level washer

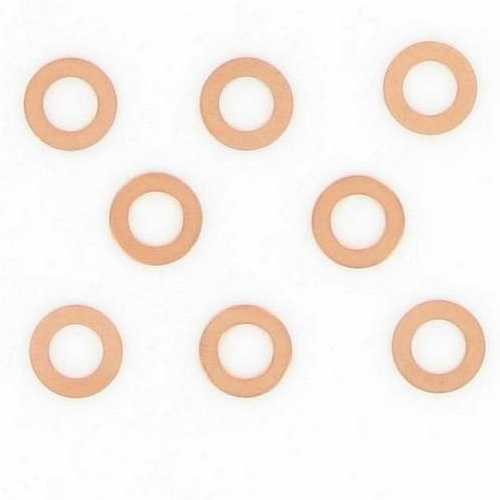

This copper or fibre washer seals the oil-level bolt.
6218W
CAD
Blueprint

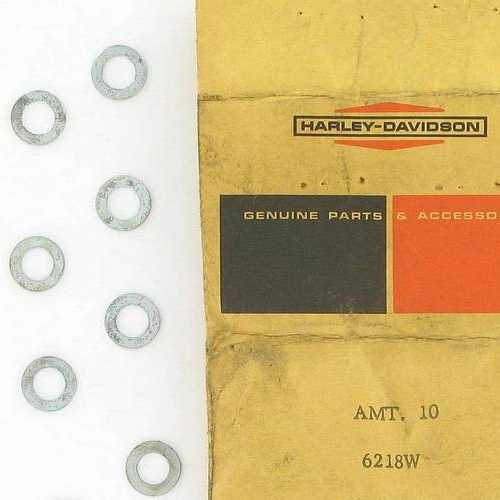

Washer, 1/4" x 7/16" x 1/32".
6620
Washer
63858-49

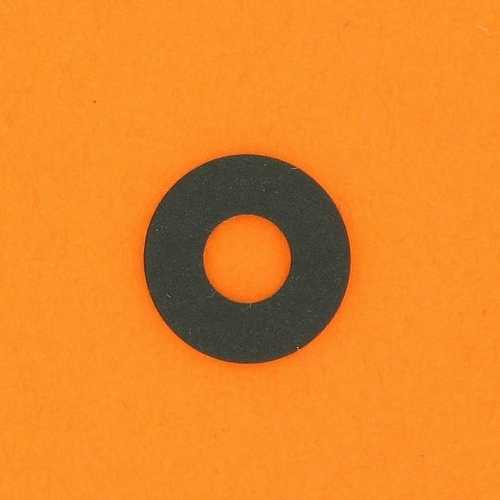

Washer, paper or fiber.
